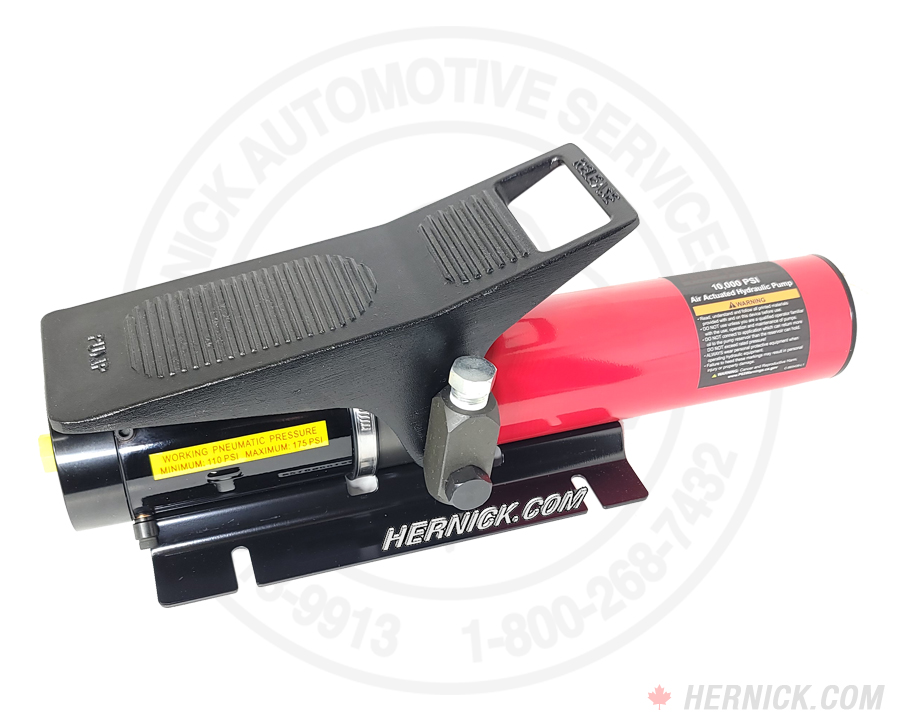

OEM Spec 10,000 PSI foot operated air pump – fits many bridge jacks using a cylindrical pump.
Note: installer may have to slightly modify the hydraulic tube that hooks up to the pump. New holes might also need to be drilled into the existing shelf that mounts the pump.
Specifications:
- 36 cubic inch oil reservoir
- Output flow rate: 61 in³/min (no load) | 11 in³/min (load)
- Input air pressure: 110-175 PSI
- Output Port (oil): 3/8″-18 NPTF
- Input Port (air): 1/4″-18 NPT
- Bolt pattern: 7″ x 3″ to 7″ x 3-3/4″
| Weight | 18 lbs |
|---|---|
| Dimensions | 20 × 8 × 8 in |
