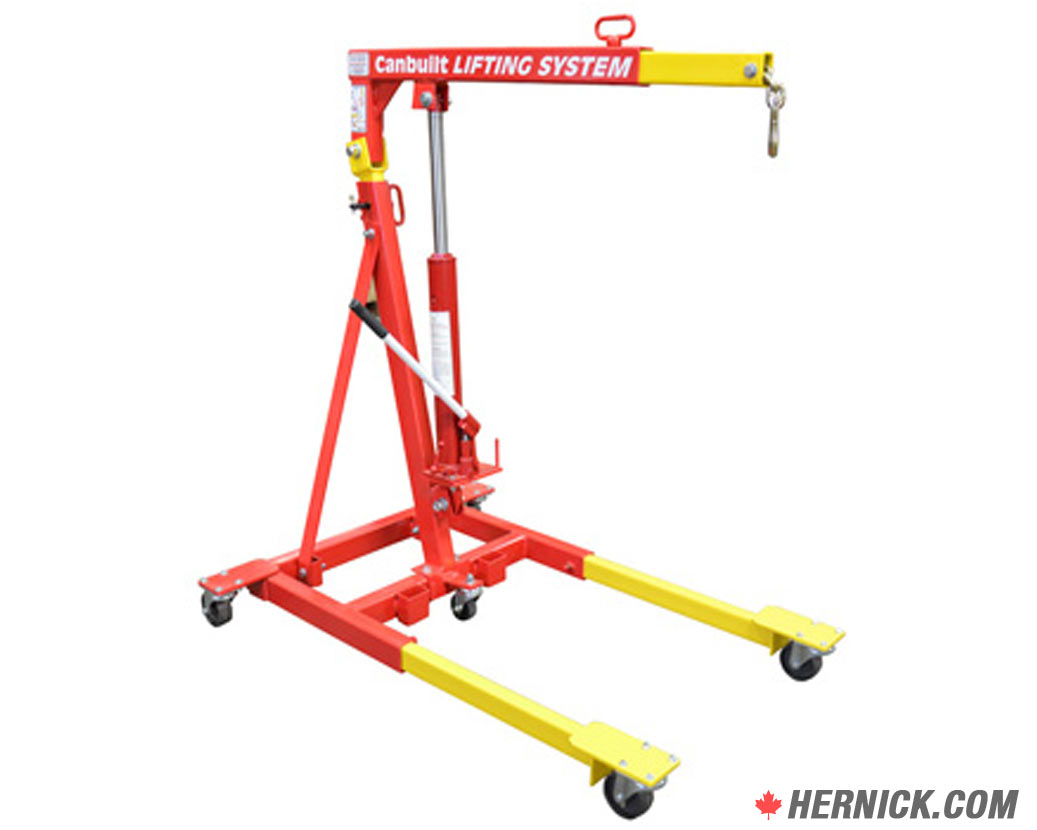

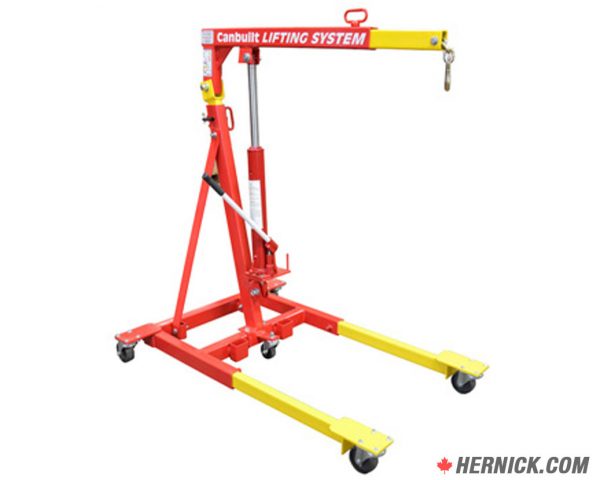

The CANBUILT 4200 1 Ton Mobile Crane is a Canadian-built, lifting solution designed for far more than just engine work. With its unique flow-through carrier base, this crane allows the front legs to telescope backward, providing a counterbalanced footprint for complex lifting scenarios. Constructed from heavy-wall rectangular steel tubing and equipped with underslung 4″ full-swivel wheels, the 4200 delivers exceptional mobility and control.
Key Features:
- 1-ton capacity mobile crane with manual hydraulic operation
- Flow-through carrier base allows telescoping legs for counterbalanced lifts
- Heavy-wall rectangular steel tubing for superior structural strength
- Underslung 4″ full-swivel wheels for maximum maneuverability
- High-quality crown tread steel wheels with dust shields and dual ball raceways
- Controlled descent via unique “lever valve” hydraulic release system
- Fully graded fasteners – minimum Grade 5, with Grade 8 at all stress points
- Also available in dual-control version (Air / Manual) – Model #4200P
| Weight | 310 lbs |
|---|---|
| Dimensions | 65 × 40 × 60 in |
CAD$1,769.70
Plus shipping & taxes
Approximate lead time: 1 week
Secure transaction
Ships from our Etobicoke warehouse or Pick it up.
