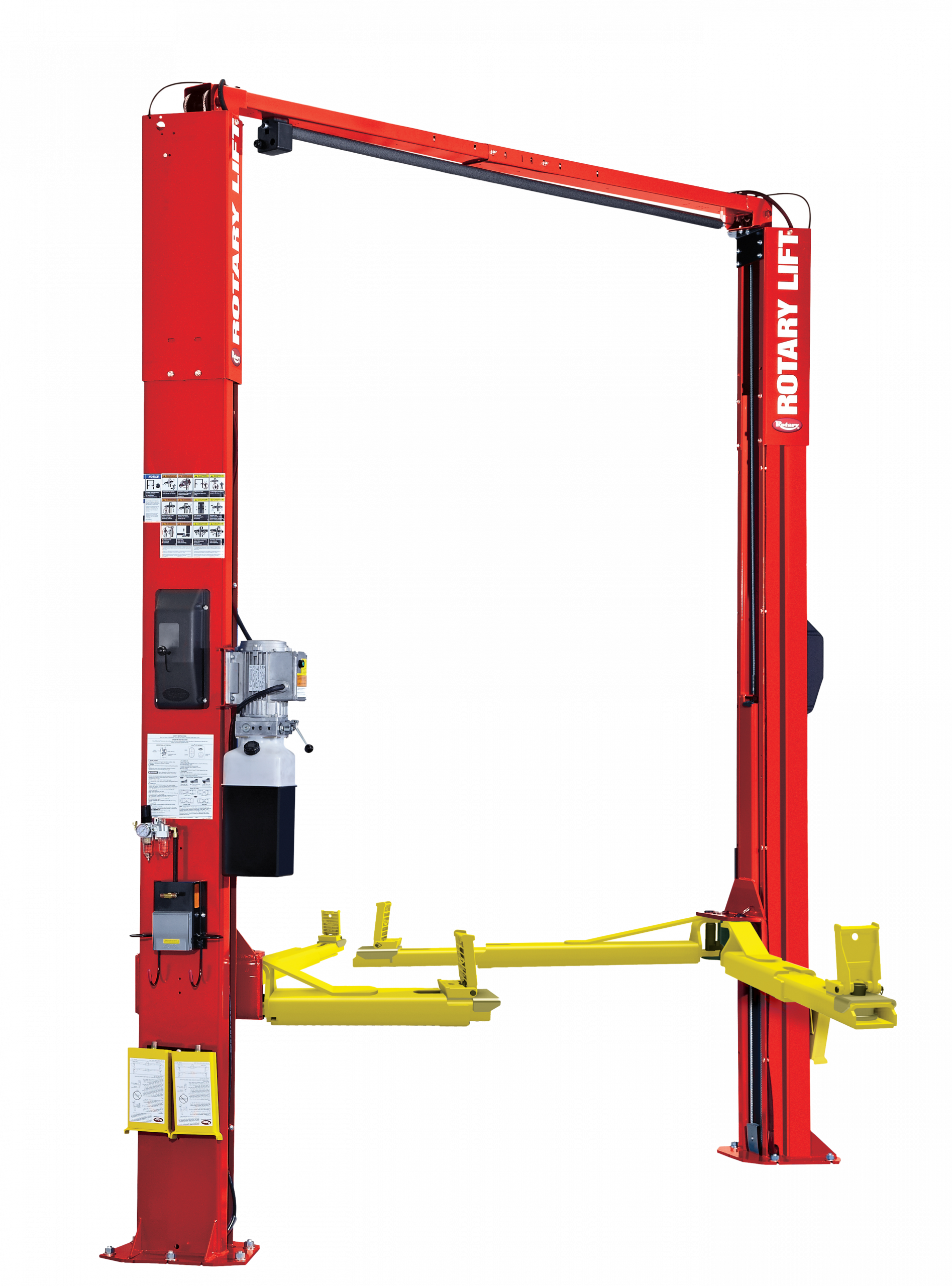

ROTARY LIFT SPO12

SPO12 Symmetric Lift

The SPO12 Series lifts: you can’t find a better designed and better engineered medium-duty lift.

Its size, wider drive-thru and larger footprint make it optimal for shops that work on taller, heavier vehicles.

Features:

  • 12,000 lbs. capacity
  • Original “Double S” column design
  • Three-stage arms for greater reach
  • Performance tested to 20,000 cycles
  • Nationwide Support
  • ALI Gold Certified
×

Shockwave

Shockwave Equipped Rotary Lifts come standard with the SPEED, CHOICE & RETURN on investment that will help you achieve your goals of greater technician productivity and higher profits.

Designed specifically for bays where service speed is paramount, Shockwave Equipped lifts are the fastest in the world; helping you keep step with the ever changing demands in the vehicle service industry.

  • Spotline™ motion activated laser helps spot vehicles the first time
  • DC power reduces operating cost
  • 2x faster rise and descent
  • More productivity makes happier technicians
shock1

Shockwave’s patent pending DC power system gives you
lower cost, more reliable operation.

Uses two standard 24 series batteries.

Its built in battery charger uses 110v power, eliminating the need for expensive 220v or higher wiring — an installation savings of up to 80%. Your Shockwave equipped lift will even operate during a power outage.

Shockwave’s earth shattering speed is achieved through the combination of its patent pending dc power system and other tech friendly features.

Specs

SPO12 Standard Model Low Ceiling Model Wide Model
Rise* 75-3/4″ to 78-1/8″ (Standard) 75-3/4″ to 78-1/8″ (Shockwave) 75-3/4″ to 78-1/8″ (Standard) N/A (Shockwave) 75-3/4″ to 78-1/8″ (Standard) N/A (Shockwave)
Overall Height 13′ 8″ 11′ 8″ 13′ 11-1/2″
Overall Width 11′ 5-3/8′ 11′ 5-3/8′ 13′ 11-1/2′
Drive-Thru 102-3/8″ 102-3/8″ 119-3/8″
Inside Columns 114-7/8″ 114-7/8″ 131-7/8″
Front Arm Min/Max 27-1/2″ / 59″ 27-1/2″ / 59″ 27-1/2″ / 59″
Rear Arm Min/Max 27-1/2″ / 59″ 27-1/2″ / 59″ 27-1/2″ / 59″
Min Adapter Height 4-3/4″ 4-3/4″ 4-3/4″
Min. Bay Size 12′ x 26′ 12′ x 26′ 14′ x 26′
Min. Ceiling Height 13′ 9″ 11′ 9″ 14′ 1/2″
Motor / Voltage 2 HP, 208-230V (Standard)5 HP, 110V (Shockwave) 2 HP, 208-230V (Standard)5 HP, 110V (Shockwave) 2 HP, 208-230V (Standard)5 HP, 110V (Shockwave)
Time of Full Rise 60 seconds (Standard) 25 seconds (Shockwave) 60 seconds (Standard) 25 seconds (Shockwave) 60 seconds (Standard) 25 seconds (Shockwave)

Asym vs Sym

TRUE ASSYMMETRICAL LIFTS

Columns are rotated 30° allowing maximum door opening on passenger cars for improved access to vehicle interior. This column rotation places the approximate center of gravity of the vehicle in line with the optimum load capability of the column, reducing unnecessary wear and tear on the column, carriage, and bearings.

TRUE SYMMETRICAL LIFTS

Lift columns are not rotated providing more width between columns to accommodate larger vehicles and improve vehicle access – allows max door opening on trucks and vans for access to vehicle interior.

Vehicle load is centered between the columns to maximize lifting capacity.

Pads / Adapters

Truck Adapters

For lifting trucks and framed vehicles

Accessories

Coming Soon

Literature

Coming Soon
