ROTARY LIFT SPO20

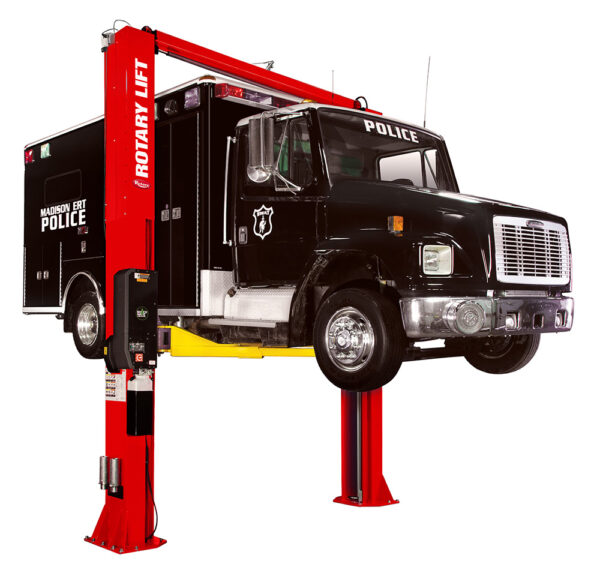

SPO20 Symmetric Lift

The SPO20 Series lifts: super duty lifts with trio arms.

Super duty symmetric lifts with industry-leading versatility; pick up a greater variety of vehicles faster and easier than any lift of it’s kind.

Features:

  • 20,000 lbs. capacity
  • Original “Double S” column design
  • Patented Three-stage TRIO arms with adjustable truck adapters
  • Nationwide Support
  • ALI Gold Certified

Shockwave

Shockwave Equipped Rotary Lifts come standard with the SPEED, CHOICE & RETURN on investment that will help you achieve your goals of greater technician productivity and higher profits.

Designed specifically for bays where service speed is paramount, Shockwave Equipped lifts are the fastest in the world; helping you keep step with the ever changing demands in the vehicle service industry.

  • Spotline™ motion activated laser helps spot vehicles the first time
  • DC power reduces operating cost
  • 2x faster rise and descent
  • More productivity makes happier technicians
shock1

Shockwave’s patent pending DC power system gives you
lower cost, more reliable operation.

Uses two standard 24 series batteries.

Its built in battery charger uses 110v power, eliminating the need for expensive 220v or higher wiring — an installation savings of up to 80%. Your Shockwave equipped lift will even operate during a power outage.

Shockwave’s earth shattering speed is achieved through the combination of its patent pending dc power system and other tech friendly features.

Specs

SPO20 Standard Model Low Ceiling Model
Lifting Capacity 20,000 lbs 20,000 lbs
Rise* 77-31/32″ to 80-1/32″ 77-31/32″ to 80-1/32″
Overall Height 15′ to 16′ 6″ 13′ 6″ to 14′ 6″
Overall Width Narrow: 12′ 11″ / Standard: 13′ 5″ / Wide 13′ 11″ Narrow: 12′ 11″ / Standard: 13′ 5″ / Wide 13′ 11″
Drive-Thru Narrow: 105-11/32″ / Standard: 111-11/32″ / Wide 117-11/32″ Narrow: 105-11/32″ / Standard: 111-11/32″ / Wide 117-11/32″
Inside Columns Narrow: 120-15/32″” / Standard: 126-15/32″ / Wide 132-15/32″ Narrow: 120-15/32″” / Standard: 126-15/32″ / Wide 132-15/32″
Front Arm Min/Max 34-11/16″ / 64″ 34-11/16″ / 64″
Rear Arm Min/Max 34-11/16″ / 64″ 34-11/16″ / 64″
Min Adapter Height 5-31/32″ 5-31/32″
Min. Bay Size 15′ x 30′ 15′ x 30′
Min. Ceiling Height 15′ 2″ to 16′ 8″ 13′ 8″ to 14′ 8″
Motor / Voltage 4 HP, 208-230V (Standard) 5 HP, 110V (Shockwave) 4 HP, 208-230V (Standard) 5 HP, 110V (Shockwave)
Time of Full Rise 81 seconds / 60 seconds (Full Capacity) / 33 seconds (Half Capacity with Shockwave) 81 seconds / 60 seconds (Full Capacity) / 33 seconds (Half Capacity with Shockwave)

Asym vs Sym

TRUE ASSYMMETRICAL LIFTS

Columns are rotated 30° allowing maximum door opening on passenger cars for improved access to vehicle interior. This column rotation places the approximate center of gravity of the vehicle in line with the optimum load capability of the column, reducing unnecessary wear and tear on the column, carriage, and bearings.

TRUE SYMMETRICAL LIFTS

Lift columns are not rotated providing more width between columns to accommodate larger vehicles and improve vehicle access – allows max door opening on trucks and vans for access to vehicle interior.

Vehicle load is centered between the columns to maximize lifting capacity.

Pads / Adapters

Truck Adapters

For lifting trucks and framed vehicles

Accessories

Coming Soon

Literature

Coming Soon
