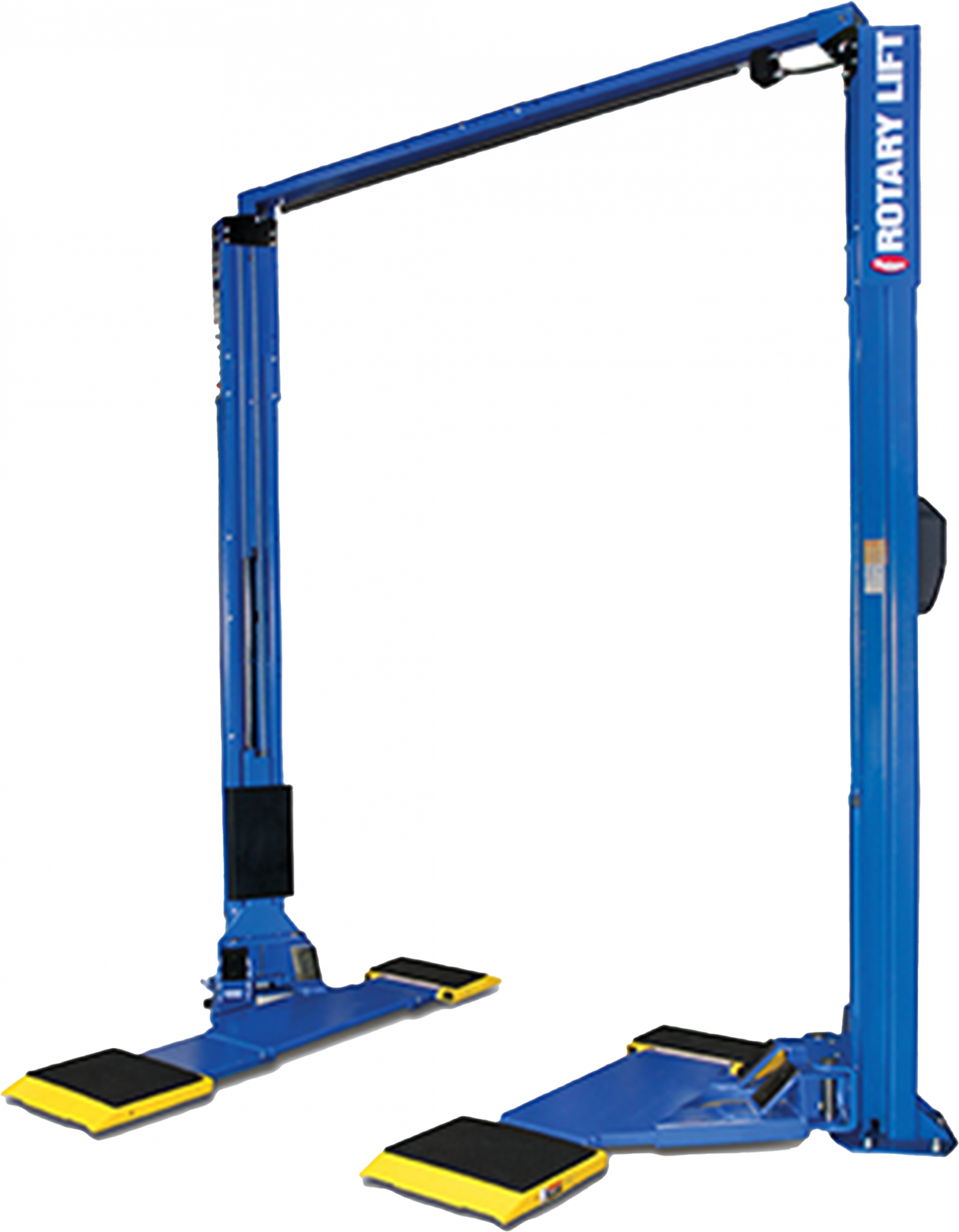

SPOA7 Asymmetrical LiftRotary’s versatile asymmetric low profile arm lift is the only lift you’ll ever need.
With options at every turn, you can customize the SPOA7 series to fit the needs of your shop and your techs.
SHOCKWAVE DC powered lifts are the fastest in the world! Accelerate productivity and increase service numbers.
| Capacity | 7,000 lbs |
|---|---|
| Vehicle Class | 1 |
| Column | Asymmetric |
| Height Option | Standard Height, 2' Height Extension |
| Shockwave | No Shockwave, Add Shockwave |
| Pads / Adapters | Movable Pads, Round Adapters |
| Rise* | 71 3/8” to 73 5/8” (Standard), 74 3/8” to 76 5/8” (Shockwave) |
| Overall Height | 11’ 8 1/2” (Standard), 12’ 4-1/2” (Shockwave) |
| Overall Width | 11’ 5 3/8” |
| Drive-thru | 78 1/8" (MP), 95 1/4” (LPA) |
| Inside Columns | 107 1/4” |
| Pad Length Overall | 71 1/8" to 87 1/4" (MP Only) |
| Inside Distance Min/Max | 39 7/8" to 56" (MP Only) |
| Front Arm Min/Max | 23 1/4” to 33 1/2” (LPA Only) |
| Rear Arm Min/Max | 33 1/2” to 54 3/4” (LPA Only) |
| Min Adapter Height | 3 3/8” (LPA Only) |
| Min Bay Size | 12’ X 24’ (LPA Only) |
| Ceiling Height Min | 12' (Standard), 12'6" (Shockwave) |
| Motor / Voltage | 2 HP, 208-230V (Standard), 5 HP / 110V(Shockwave) |
| Time of Rise / Descent | 45 / 40 seconds (Standard), 25 / 19 seconds (Shockwave) |
* Rise measures lowest and highest position of the supplied adapters from floor to full cylinder stroke
Columns are rotated 30° allowing maximum door opening on passenger cars for improved access to vehicle interior. This column rotation places the approximate center of gravity of the vehicle in line with the optimum load capability of the column, reducing unnecessary wear and tear on the column, carriage, and bearings.
Lift columns are not rotated providing more width between columns to accommodate larger vehicles and improve vehicle access – allows max door opening on trucks and vans for access to vehicle interior.
Vehicle load is centered between the columns to maximize lifting capacity.
Improve vehicle reach with ultra-low profile, easy to adjust pads. With a minimal 2.625” drive-over clearance, vehicles can be spotted quickly, easily and accurately.
Round polymer adapters that thread-up with optional stackable inserts create greater lifting options.
